Features
Features
- Bidirectional optical power and alarm monitoring
- Optical power degradation analysis
- DWDM module status monitoring at BBU and AAU ends
- LC connector
Application
Description

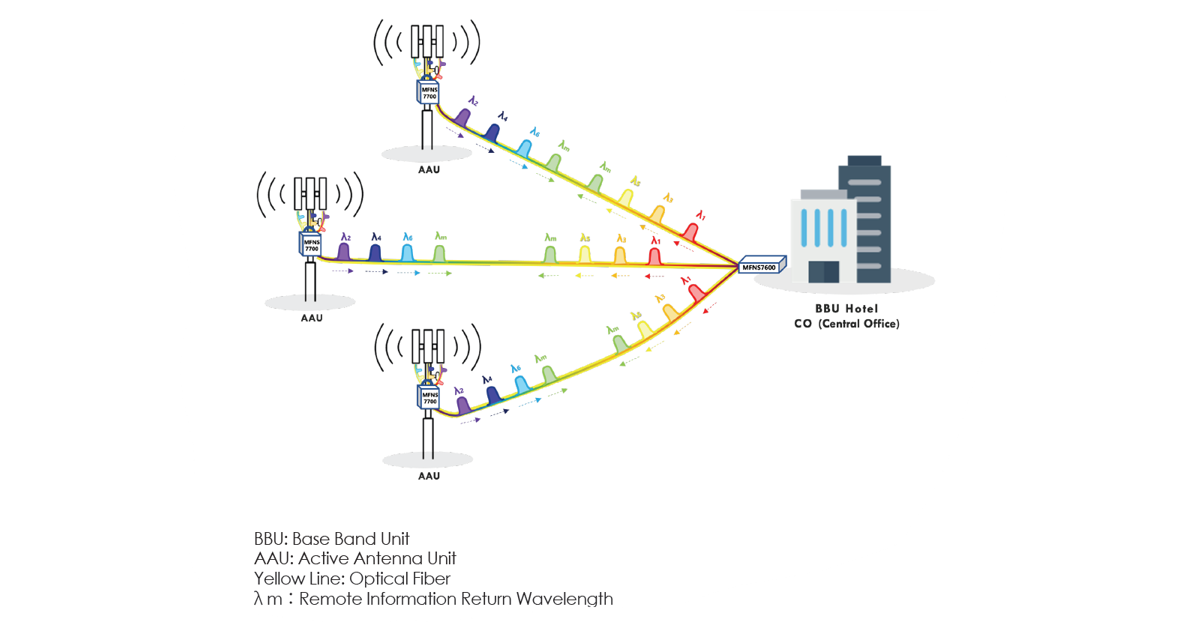

Ascentac MFNS 7600 & 7700 Series C-Band DWDM Optical Power MonitoringAscentac MFNS 7600 & 7700 Series C-Band DWDM Optical Power MonitoringEquipment can couple multiple optical fiber signals of different wavelengths into asingle optical fiber, enabling simultaneous transmission of multiple signals.

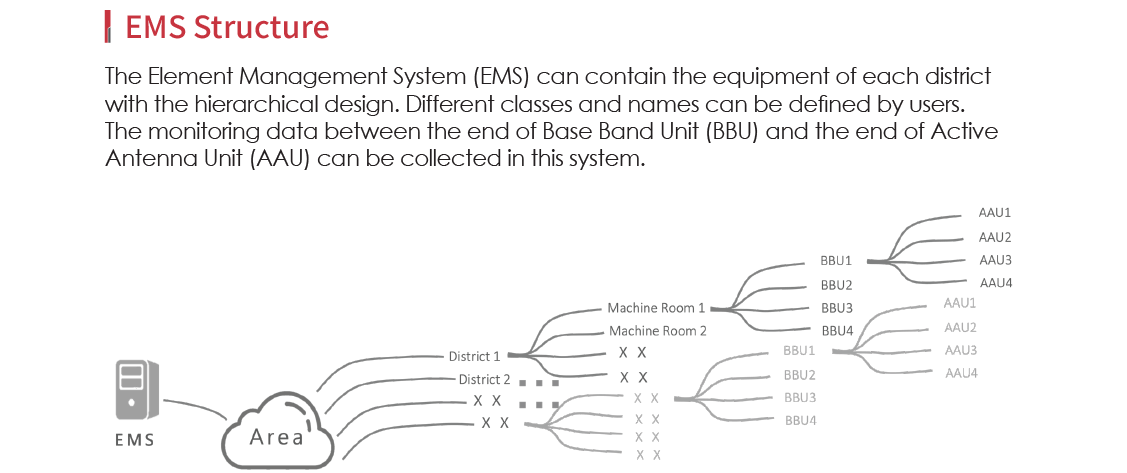

This series provides real-time monitoring of optical power variations on each channel,with an optical power status indicator for each channel, allowing users to easily identifythe operating status of individual channels. It also provides an optical monitoringport, enabling direct measurement of optical characteristics without interrupting thesystem operation. When integrated with a Network Management System (NMS), theequipment can centrally manage devices across multiple base stations. Users candefine their own optical power threshold values. When an abnormal optical powercondition is detected, the system will generate an alarm. Through the NMS, users canquickly identify whether the fault is located at the BBU (Baseband Unit) side, AAU (ActiveAntenna Unit) side, or somewhere along the transmission line, facilitating efficient faultdetection and troubleshooting.

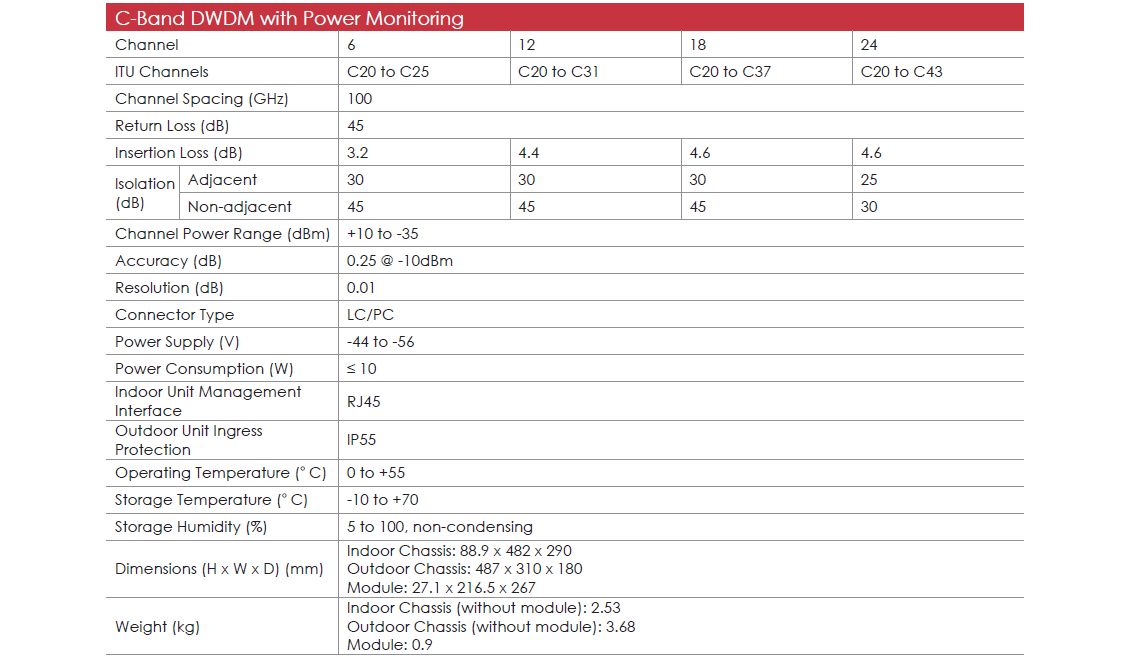

Specification
