Features
Features
- Self-contained light shielding cap reduces interference from ambient light.
- Supports multiple fiber diameters – no clamp replacement required.
- Automatic identification of frequency (270Hz, 1kHz, or 2kHz).
- Built-in VFL red light source for fault locating.
- Integrated optical power meter.
- Utilizes macro-bending technology for non-destructive measurements.
Application
- Telecom maintenance
- CATV maintenance
- Optical fiber testing
- Other fiber optic maintenance
Description
Ascentac OCI624, Optical Fiber Identifier, can detect optical signal presence, type and direction and measure relative optical power anywhere on a single-mode or multiple-mode fiber. Its reliable and safe macro–bending technique does not disrupt service. Nor does it overstress or damage fibers.
The Ascentac OCI624 Series can automatically identify frequencies of 270Hz, 1kHz, or 2kHz. Its LCD display ensures visibility even under direct sunlight, and in bright environments, the device supports ambient light calibration.
The series is compatible with 0.25mm bare fiber and fiber patch cords of 0.9mm, 2.0mm, and 3.0mm. The four-in-one design eliminates the need for changing clamps.

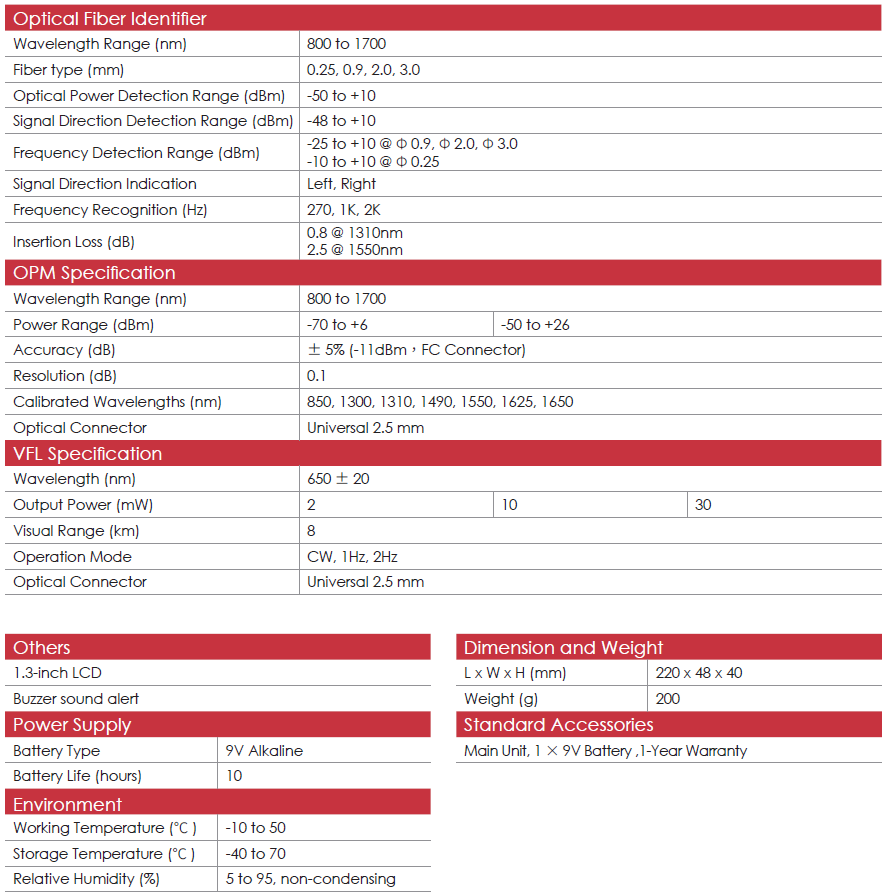

Specification
