Features
Features
- Maximum Dynamic Range of 76 dB (+6 to -70dBm or +26 to -50dBm)
- Built-in visual fault locator (VFL)
- 7 calibration wavelengths (850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm & 1650nm)
- Wavelength memory function
- Auto shutdown for extending the battery life
- Display Units: dB, dBm, mW
Application
- Optical power or loss measurement in telecom or CATV installation and maintenance
Description
Ascentac OPM110 Series, Optical Power Meter, is widely with 7 wavelength selections, including 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm & 1650nm. The dynamic range from +26 to -50 dBm or +6 to -70 dBm provides high accuracy for optical power measurement in fiber-optic networks. It can be used for absolute and relative optical power measurement.
Ascentac OPM110 Series has built-in visual fault locator (VFL) and features excellent mobility owing to its mini-size and light weight. It can be powered by dry batteries. Its low power consumption and auto shutdown function allow extended operation in the field.
The OLED display makes measured values read easily. The interface with clearly labeled and intuitive key pad is easy for use. What‘s even better is that Ascentac OPM110 Series is fairly budget-friendly.

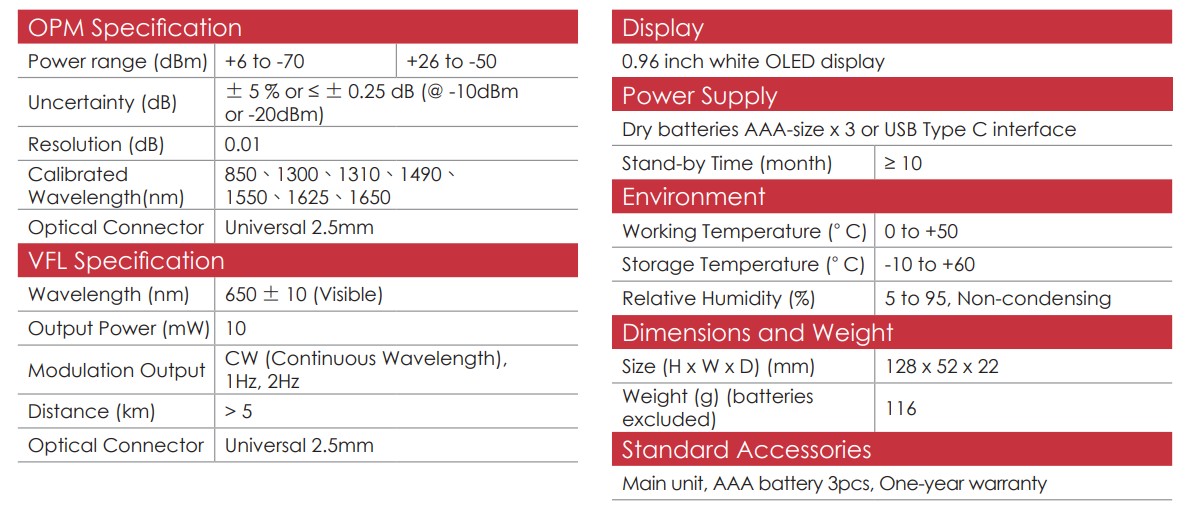

Specification
