Features
Features
- Maximum dynamic range of 76 dB (+6 to -70dBm or +26 to -50dBm)
- Option: function of visual fault locator with CW (Continuous Wavelength) or modulated tones at 1Hz or 2Hz
- 7 calibration wavelengths (850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm and 1650nm)
- Automatic wavelength recognition for time saving and error-free (Must use with Ascentac OLS200)
- Analysis of cable status e.g. Low Power (Displayed on screen) (Threshold can be set up)
- Document results and generate reports to PC via USB connection
- Generous data storage up to 1000 records
- Auto shutdown & backlight sleep mode for extending the battery life (Programmable)
Application
- Optical power or loss measurement in telecom or CATV installation and maintenance
Description
Ascentac OPM120 Series, Optical Power Meter, provides high accuracy for optical power measurement in fiber-optic network. It has a wide dynamic range from +6 to -70dBm or +26 to -50dBm. Offering seven calibrated wavelengths (85onm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm & 1650nm) makes it ideal for both singlemode and multi-mode fiber testing. Furthermore, its wavelength can be automatically selected when it is paired with Ascentac Optical Light source (OLS200). Technicians are not required to manually set up the calibration parameter. It speeds up the test and eliminates possible failures of setting.
Ascentac OPM120 Series also has the capacity to analyze the cable status. ‘’Low Power” alarm reads on screen when the measured value is lower than the threshold users set up. Test results can be stored up to 1000 records and easily transferred to PC via USB connection.
Its interchangeable connectors (SC, FC, LC, Universal 2.5mm&1.25mm) are dust-and-drop protected. All other common features like relative measurements and auto-shutdown are included.

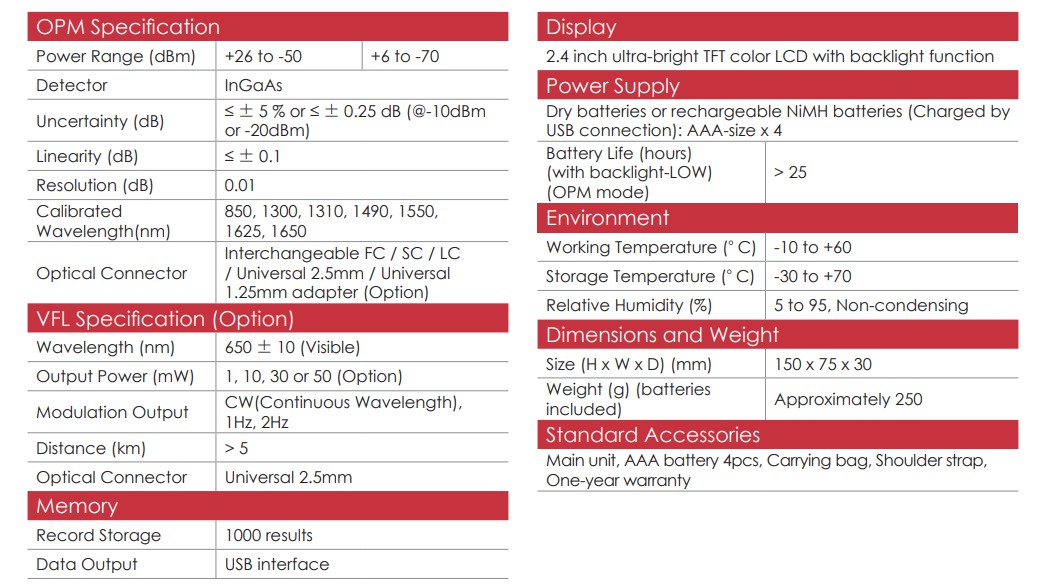

Specification
