Features
Features
- 1, 10, 30 or 50mW output power (Option)
- Distance: 5km to 30km (Depend on output power)
- CW and 2Hz modulation
- Built-in universal 2.5mm tip sleeve
- Compact and lightweight design for easy carrying
Application
- Optical power or loss measurement in telecom or CATV installation and maintenance
Description
Ascentac VFL200 Series, Visual Fault Locator, is used for fiber identification or troubleshooting. It can help technicians to diagnose faults in optical fibers, including fiber damages or breaks, improperly attached fiber connectors, bending, and so forth.
It features strong penetration of its output power. The red illumination visible to the naked eyes will appear at the location of damages. This fault locator can be operated in either continuous wavelength (CW) mode or pulse modulation mode.

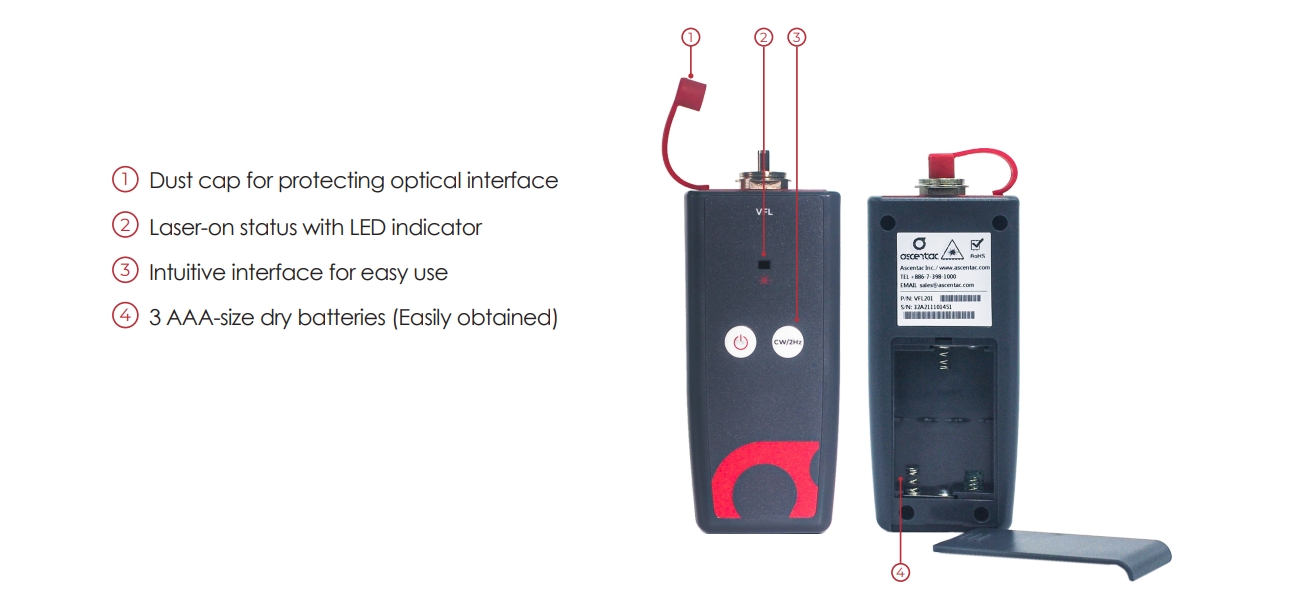

It has dust cap for protecting optical interface. The pocket-sized design makes it easy to carry. It’s not only rugged and durable but also cost-effective.

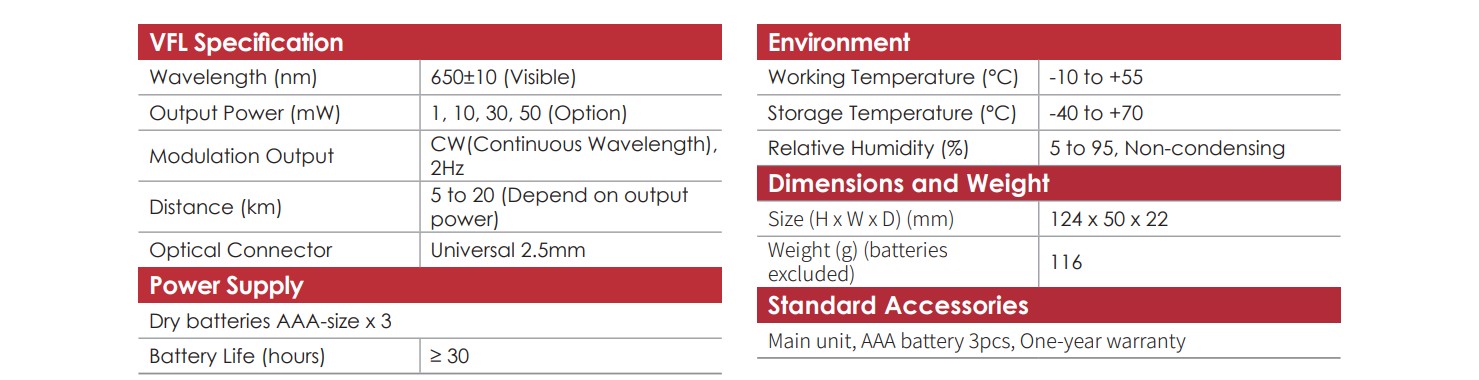

Specification
