Features
Features
- Live fiber / online test without disrupting traffic
- Detecting a variety of optical tones (270Hz, 1kHz or 2kHz)
- Digital display of relative optical power
- Corresponding adapters for bare fibers and multiple pigtail
- Easy-to-use with one-touch operation
Application
- Telecom maintenance
- CATV maintenance
- Fiber-optic lab testing
- Other Fiber-optic measurements
Description
Ascentac OCI623, Optical Fiber Identifier, can detect optical signal presence, type and direction and measure relative optical power anywhere on a single-mode or multiple-mode fiber. Its reliable and safe macro–bending technique does not disrupt service. Nor does it overstress or damage fibers.
It can identify a specific fiber from the route by transmitting a light source at wavelength 1310nm or 1550nm with signal 270Hz, 1KHz or 2KHz into one end of optical fiber during installation, maintenance, rerouting or restoration. The identifier recognizes the modulation like 270Hz, 1kHz and 2kHz. In addition, it is equipped with four adapter heads and sunshade cover for more accurate test.

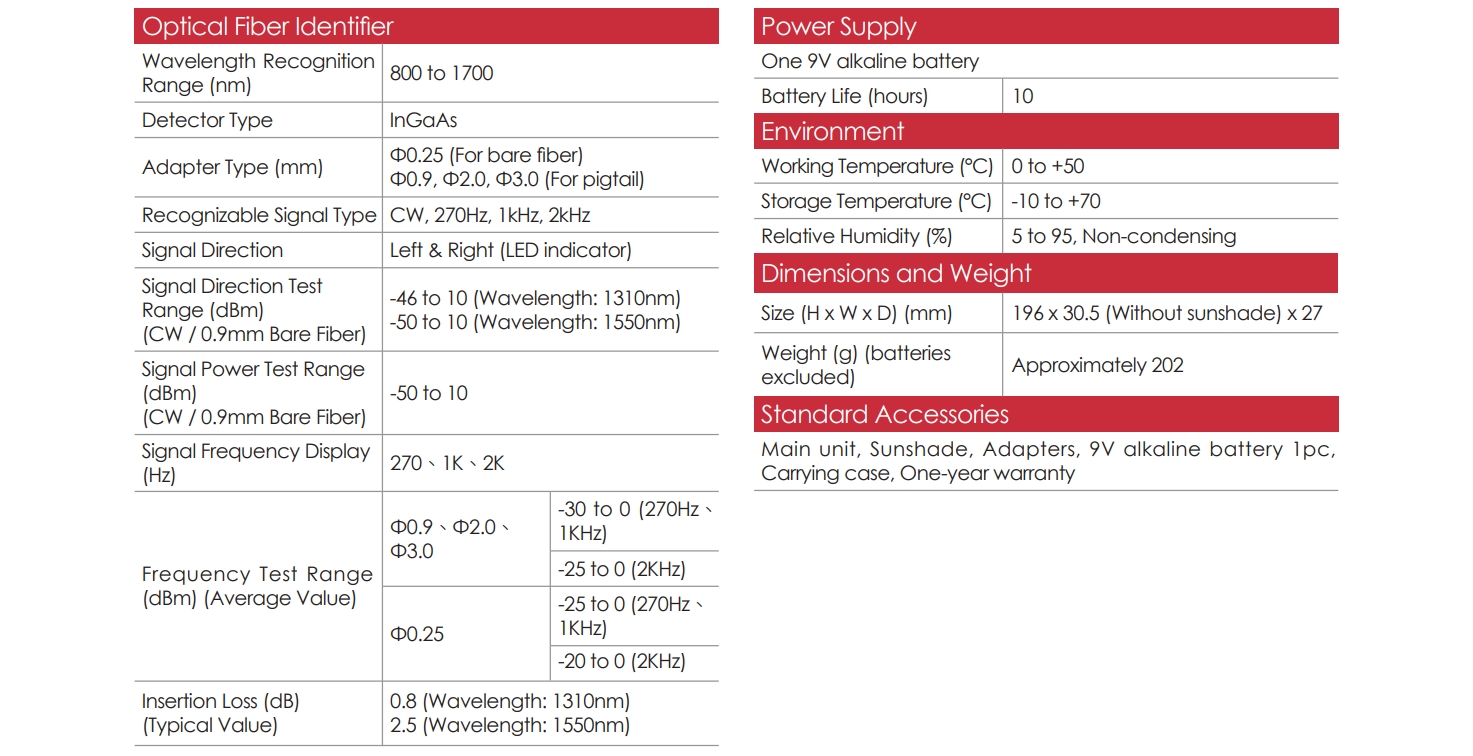

Specification
