Features
Features
- Data transfer from a PC via USB
- Memory capacity of 1000 results
- Auto shutdown & backlight sleep mode (Programmable) (Extend the battery life)
Application
- Optical power or loss measurement in telecom or CATV installation and maintenance
Description
Ascentac OMM300 Series, Optical Multi Meter, combines optical light source (OLS), optical power meter (OPM) and visual fault locator (VFL) in one handheld unit. It’s available to test for both Multimode and single mode fibers.
Ascentac OMM300 Series can be used to measure the power in an optical signal. It also provides stable output light with two different wavelength options.
Ascentac OMM300 Series can accommodate up to 1000 results and transfer data to PC via USB connection. It is battery-operated by either dry batteries or rechargeable batteries (4 AAA-size).

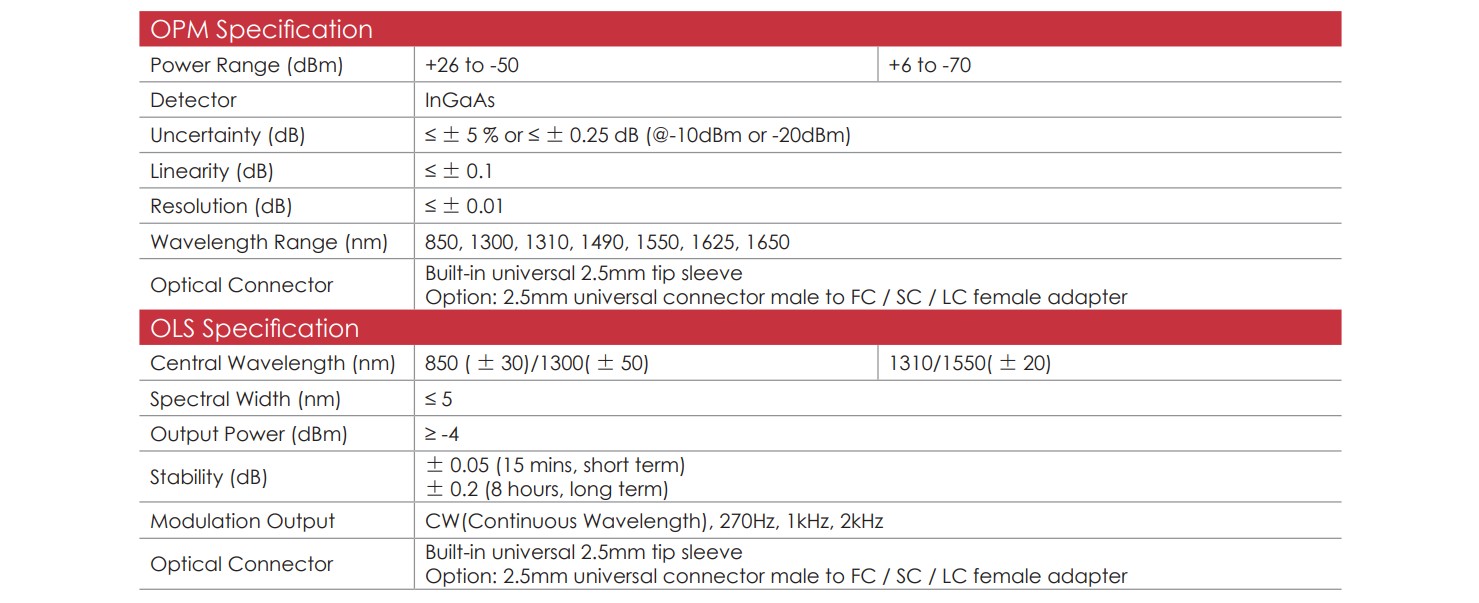

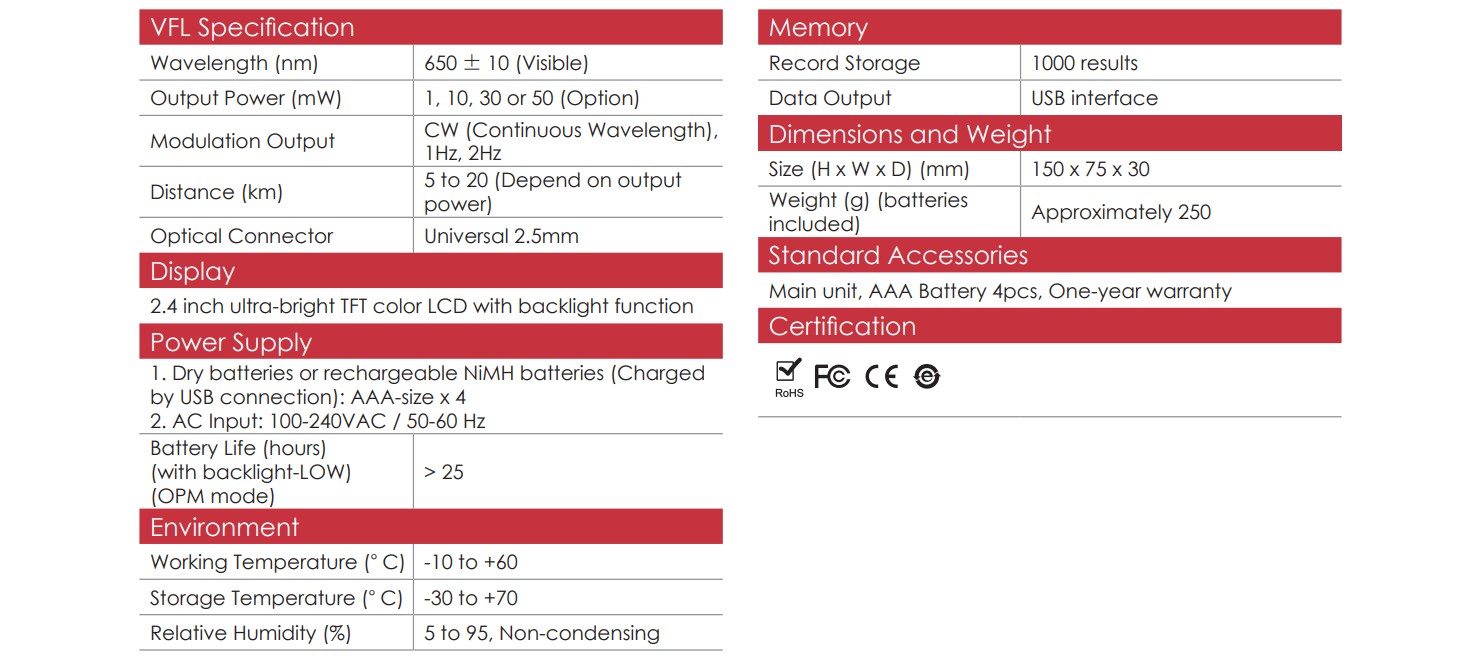

Specification
