Features
Features
- Self-contained light shielding cap reduces interference from ambient light
- 4-in-1 Universal fixture
- Automatic identification of frequency (270Hz, 1kHz, or 2kHz)
- Built-in 10mW VFL for fault locating and LED for dark construction
- USB Type-C charging
- Utilizes macro-bending technology for non-destructive measurements
Application
- Telecom maintenance
- CATV maintenance
- Fiber-optic lab testing
- Other Fiber-optic measurements
Description
Ascentac OCI625, Optical Fiber Identifier, can detect optical signal presence, type and direction and measure relative optical power anywhere on a single-mode or multiple-mode fiber. Its reliable and safe macro–bending technique does not disrupt service. Nor does it overstress or damage fibers.
Ascentac OCI610 Series can automatically identify frequencies of 270Hz, 1kHz, or 2kHz. Its OLED display ensures visibility even under direct sunlight, and in bright environments, the device supports ambient light calibration.
The series is compatible with 0.25mm bare fiber and fiber patch cords of 0.9mm, 2.0mm, and 3.0mm. The four-in-one design eliminates the need for changing clamps.

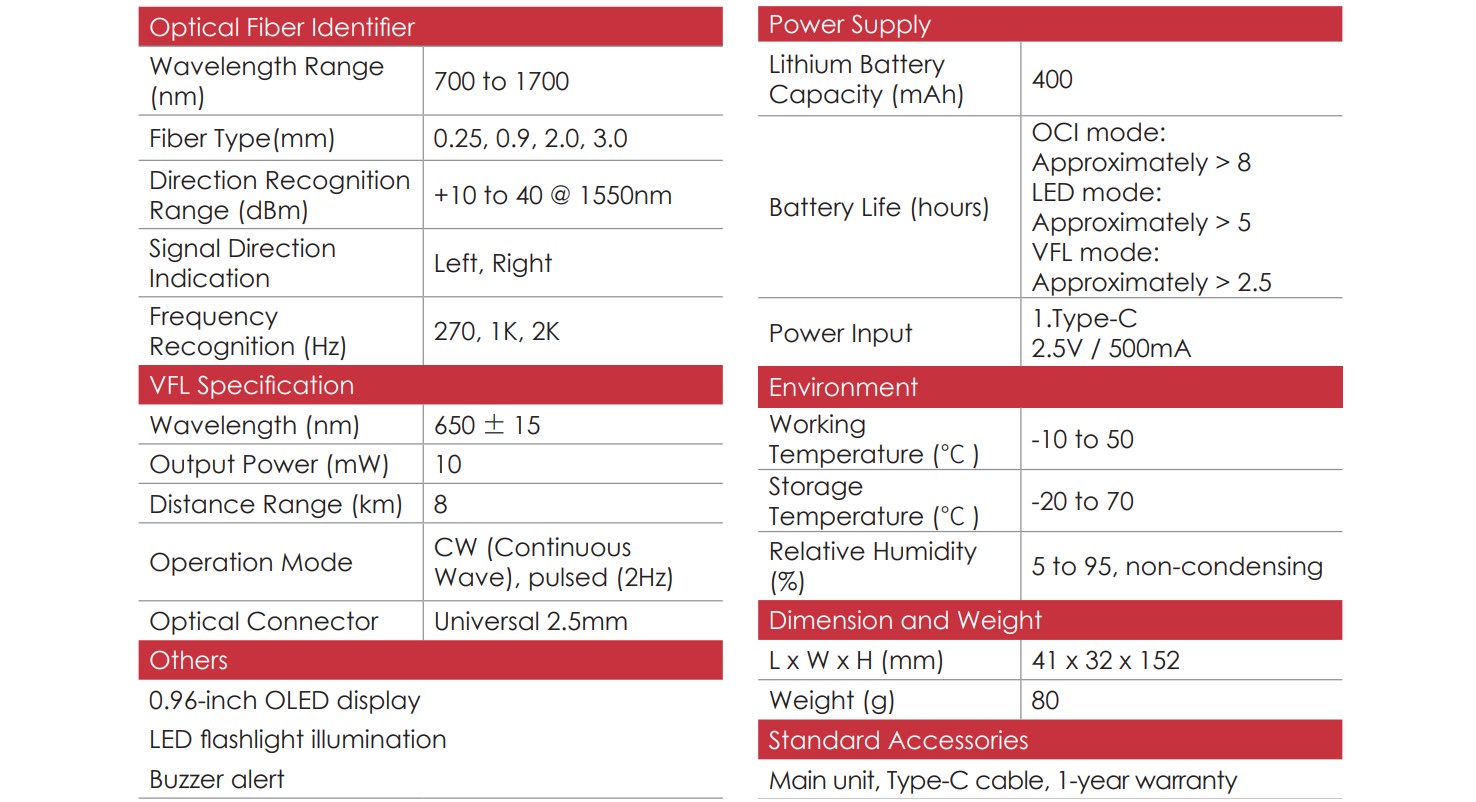

Specification
