Features
Features
- Fast 6-channel testing within 1.5s
- Support live testing
- Compatible with 1x8 optical splitters
- Built-in VFL
- Non-damaging macro-bend testing
- 20-Hour Battery Life
Application
- Data center line testing
- Optical splitter line testing
OCI630 Series can quickly identify live or dark fibers. With signal transmitters, it can further identify the signal of a specific fiber-optic line, accurately targeting the correct fiber in a complex fiber-optic environment.

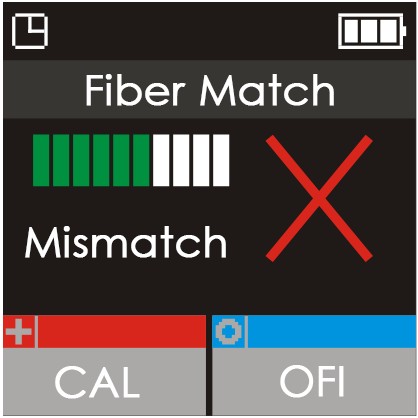

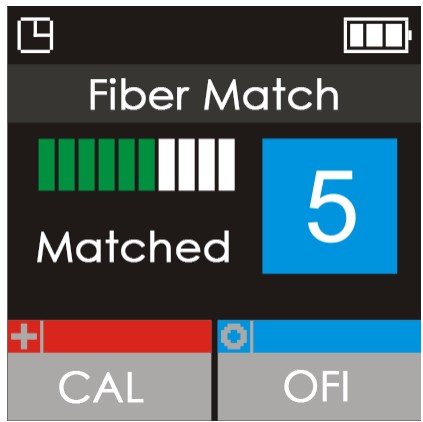

Signal Transmitter ID: Successfully connected
X: Not connected

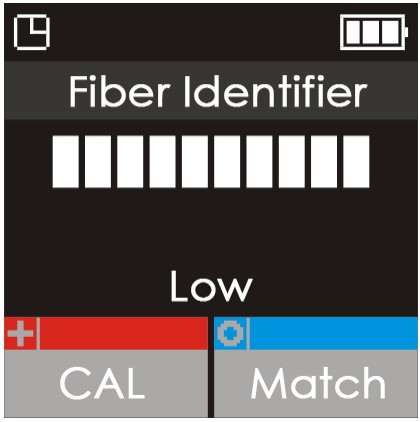

Low: The fiber is a dark fiber
Description

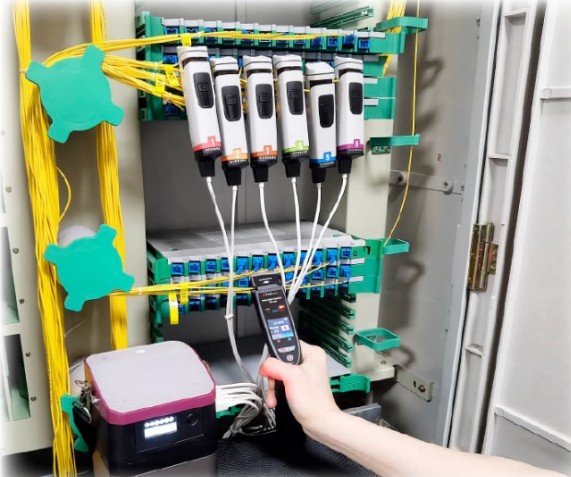

Ascentac FiberGo OCI630 Series, Optical Fiber Identifier, is used for data center line testing. It allows for simultaneous testing of up to 6 optical fiber channels without interrupting services or damaging the fibers.
It quickly and accurately identifies the target fiber and its signal transmission direction. With a high dynamic range, it accurately tests through 1x8 optical splitters.

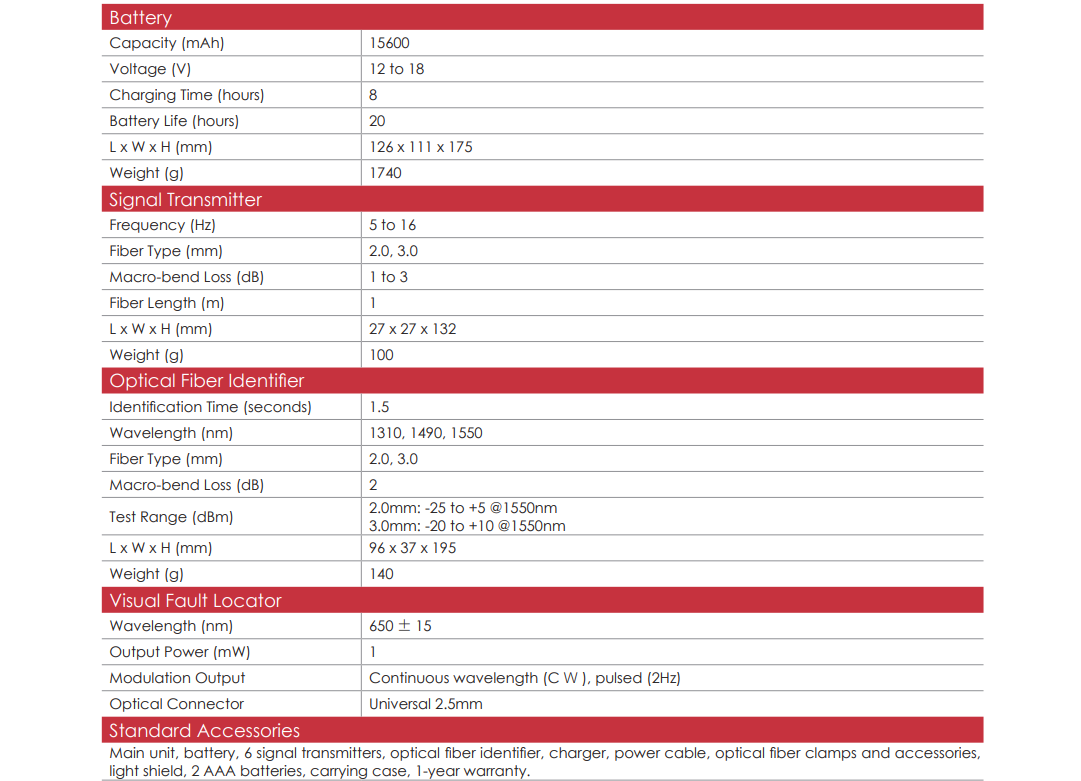

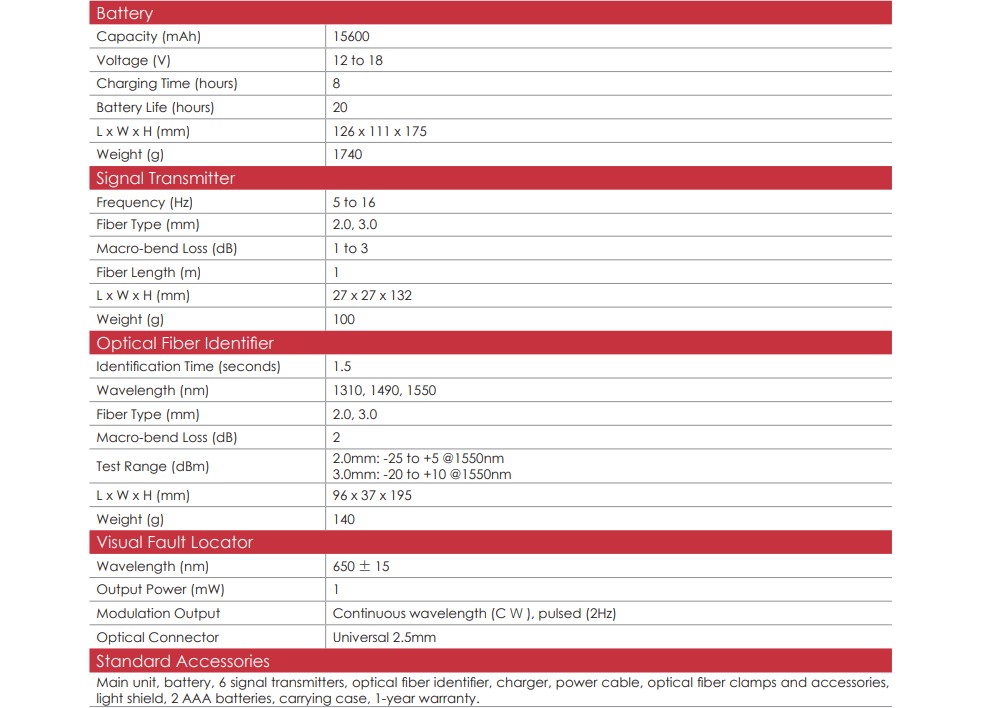

Specification
