Features
Features
- Attenuation mode: open-loop, closed-loop, and power monitoring
- Attenuation range: 0 to 40 dB
- Insertion loss < 2.2 dB
- Low-brightness, eye-comfort display for extended use
- Space-saving design for vertical or horizontal placement
- Supports remote control via Ethernet port
- USB Type-C charging
Application
- Bit error rate test
- Calibration and verification of optical power meter
- Optical receiver sensitivity measurement
Description
Ascentac FiberVERA TestMate2300 Series, Variable Optical Attenuator, delivers high-precision attenuation across a wide wavelength range with low insertion loss. Its three modes―Open-Loop, Closed-Loop, and Power Monitoring―are ideal for optical power calibration and receiver sensitivity testing.
Flexible control is provided via the intuitive front panel or remotely through standard Ethernet (LAN) and RS232 interfaces, enabling seamless integration into any automated test environment.
Its compact, dual-orientation design maximizes valuable desk space. A clean, intuitive user interface streamlines the entire workflow, making even complex testing straightforward and efficient.

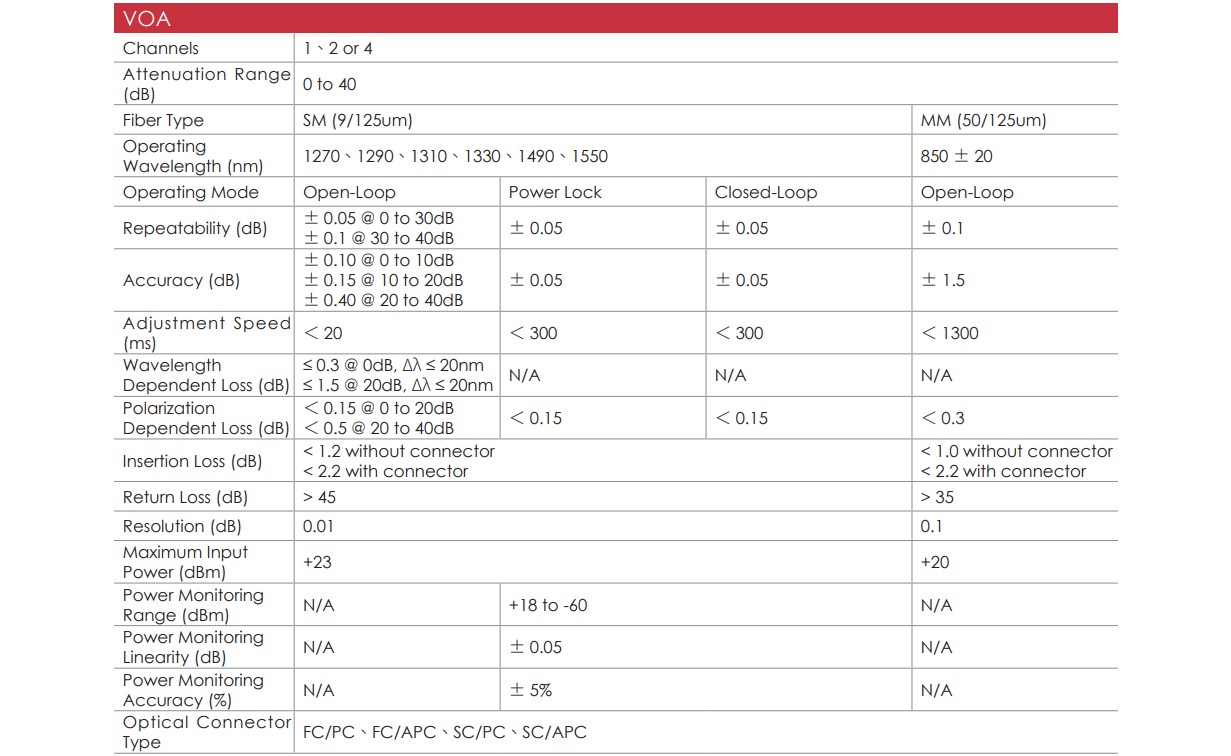

Specification
