Features
Features
- All-in-one backpack: portable, single-operator operation
- Built-in battery for up to 8 hours of continuous testing
- Up to 14 commercial handsets; 4-operator parallel benchmarking
- Multi-technology: 2G / 3G / 4G / 5G (SA/NSA)
- Automatic indoor positioning (gyroscope, <0.3% deviation)
- Highly sensitive GPS for high-speed rail & highways
- QR-code pairing avoids cross-unit interference
- Centralized data management and analysis
Application
- Mobile operator network benchmarking
- Indoor coverage: malls, offices, airports
- Lifts, escalators and stairwells
- Highways and high-speed rail
- Subways and tunnels
- Campuses and public venues
Description
Ascentac RealUE Mobile Testing System is an intelligent, all-in-one backpack solution that lets a single engineer perform professional multi-network mobile field testing and benchmarking ― indoors and outdoors― using commercial handsets that reflect the true subscriber experience.
Measuring real network quality in the field traditionally means hauling bulky equipment, dedicating several engineers, and wrestling with cables and external power ― slow to set up and hard to move through buildings or onto a train. Ascentac RealUE Mobile Testing System removes those barriers.

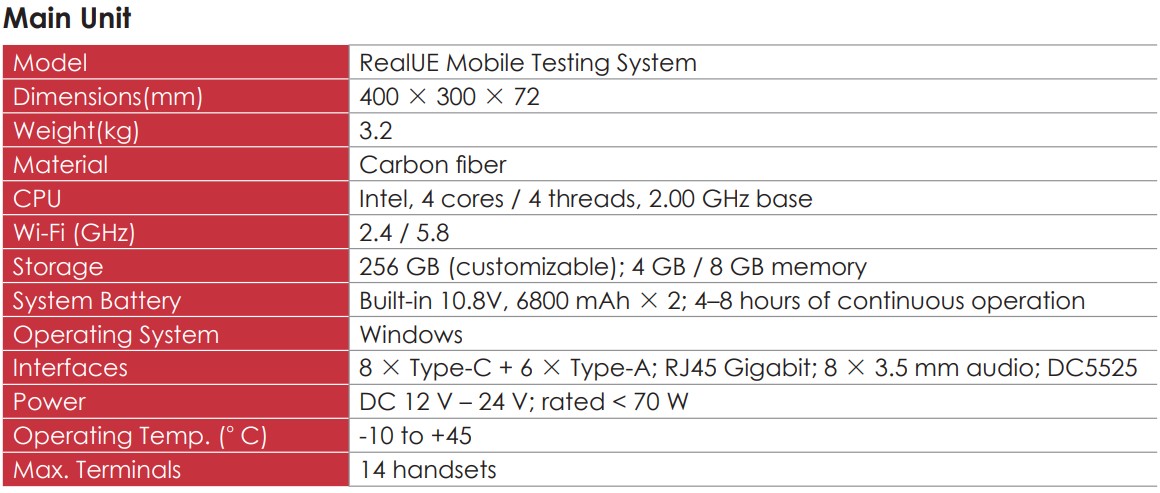

Ascentac RealUE Mobile Testing System is a portable, multi-device and multitechnology field test solution housed in a single backpack. A tablet controller manages all test configuration and real-time measurement, while a rugged chassis delivers the processing power and secure device connectivity required for multi-device testing and multi-network benchmarking. Its compact, lightweight design enables one engineer to carry out professional indoor and outdoor testing ― from drive tests along highways to walk tests through buildings, lifts and stairwells ― built around three principles: operational efficiency, centralized control, and comprehensive information.
Product Advantage

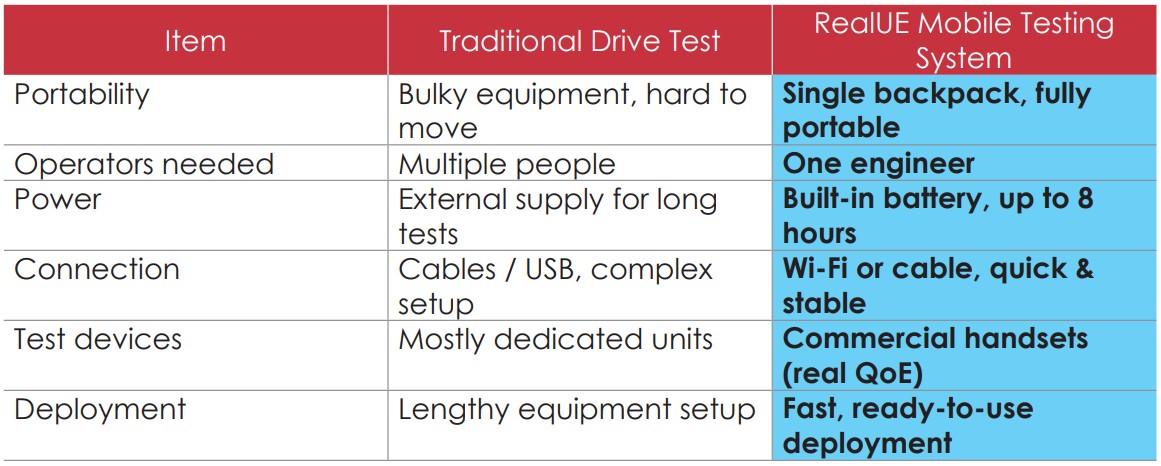

Compared with a traditional drive-test setup, Ascentac RealUE Mobile Testing System consolidates the entire test rig into one backpack ― cutting equipment, manpower and setup time while improving mobility and data quality.

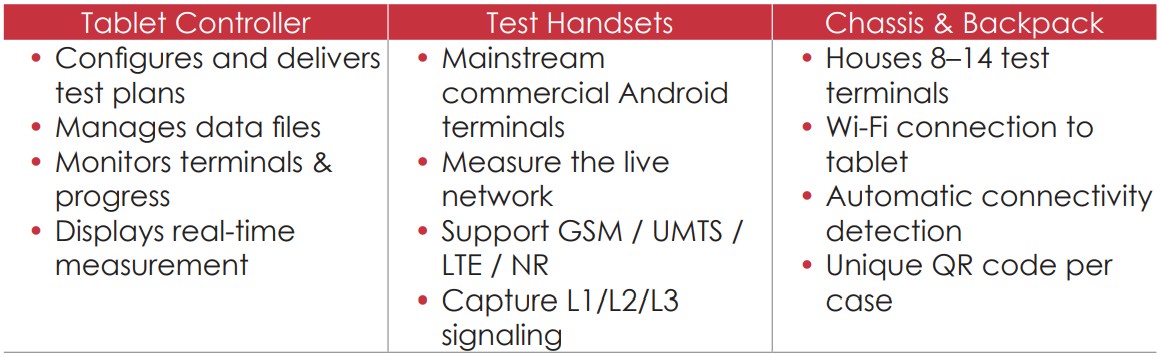

System Components
Ascentac RealUE Mobile Testing System consists of three building blocks working together over Wi-Fi:
