Features
Features
- Data transfer from a PC via USB
- Memory capacity of 1000 results
- Auto shutdown & backlight sleep mode (Programmable) (Extend the battery life)
Application

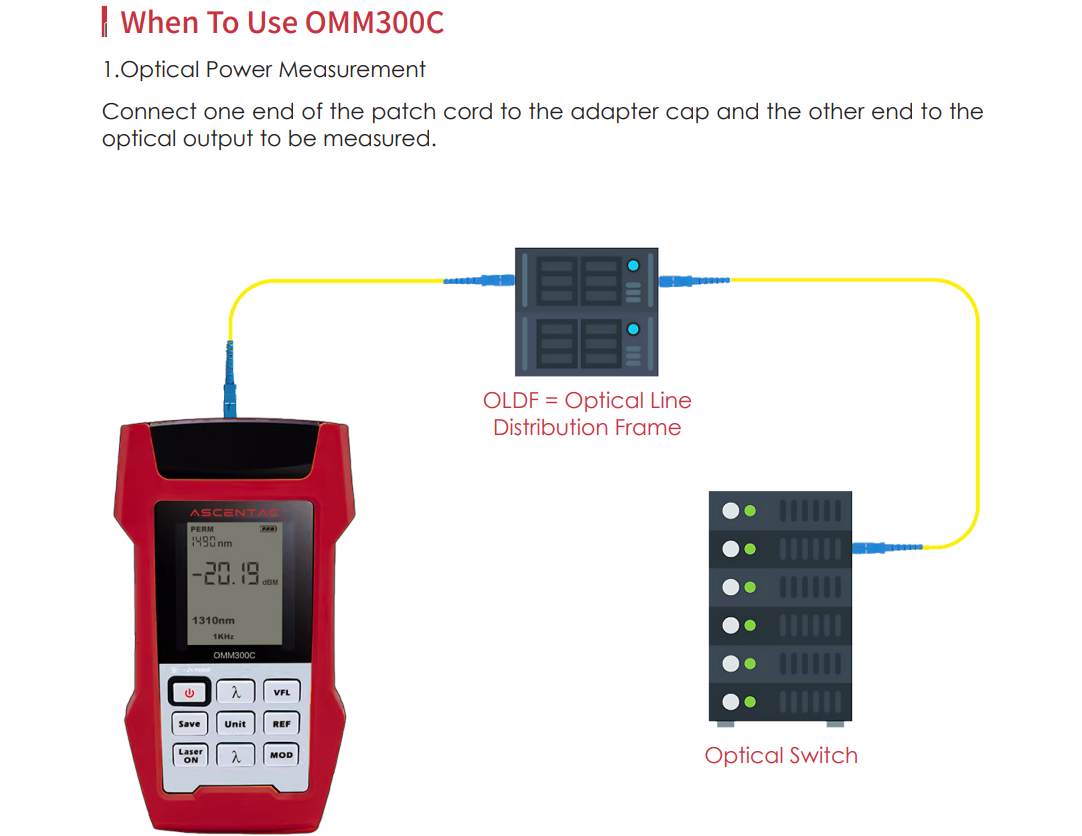

- Optical power or loss measurement in telecom or CATV installation and maintenance
Description
Ascentac OMM300C Series, Optical Multi Meter, combines optical light source (OLS), optical power meter (OPM) and visual fault locator (VFL) in one handheld unit. It’s available to test for both Multi-mode and single mode fibers.
Designed to meet the demands of fieldwork, Ascentac OMM300C Series features an integrated light source and optical power meter, with automatic wavelength identification. It can accommodate up to 1,000 test results and transfer data to PC via USB connection. The device is powered by three AAA dry batteries or rechargeable batteries, and it can be charged via a Mini USB port.

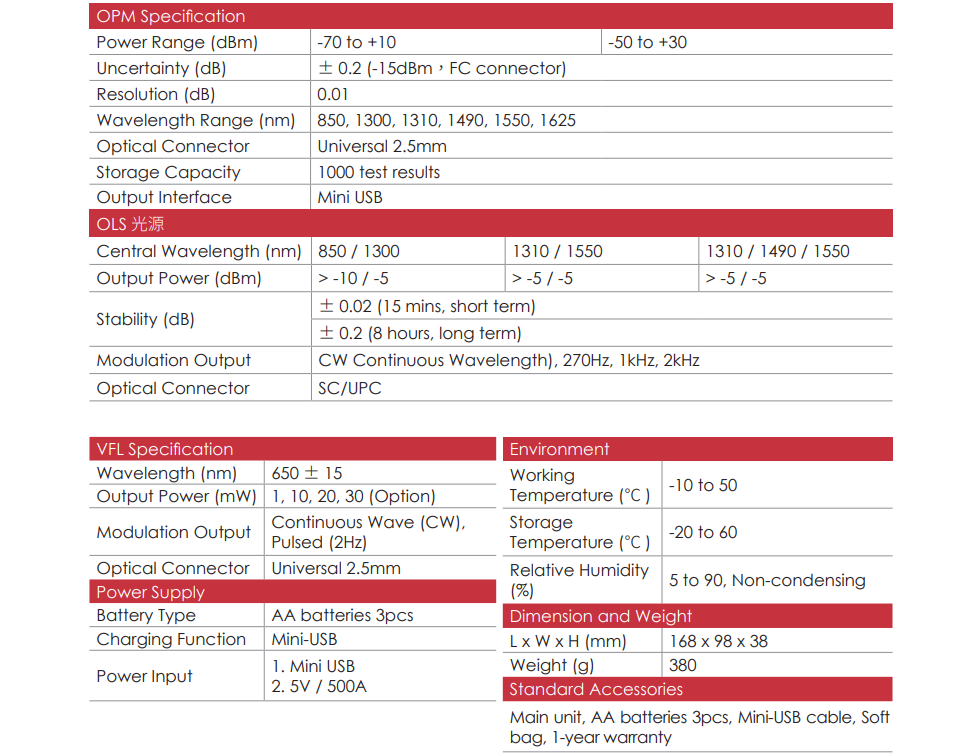

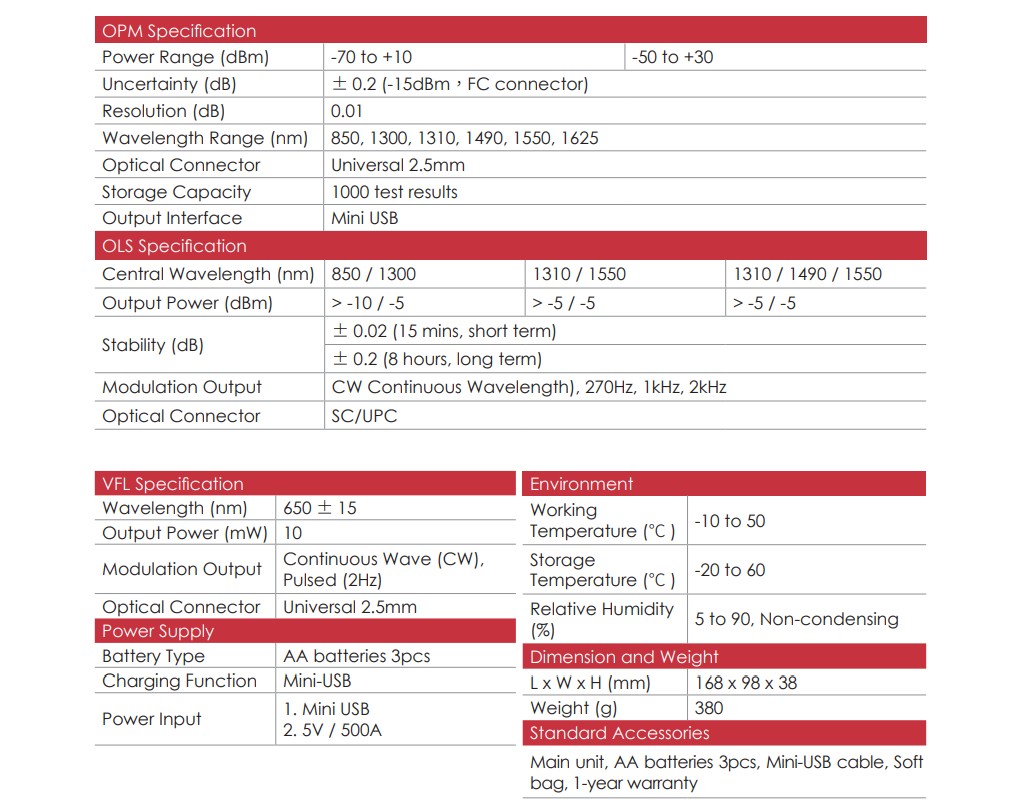

Specification
